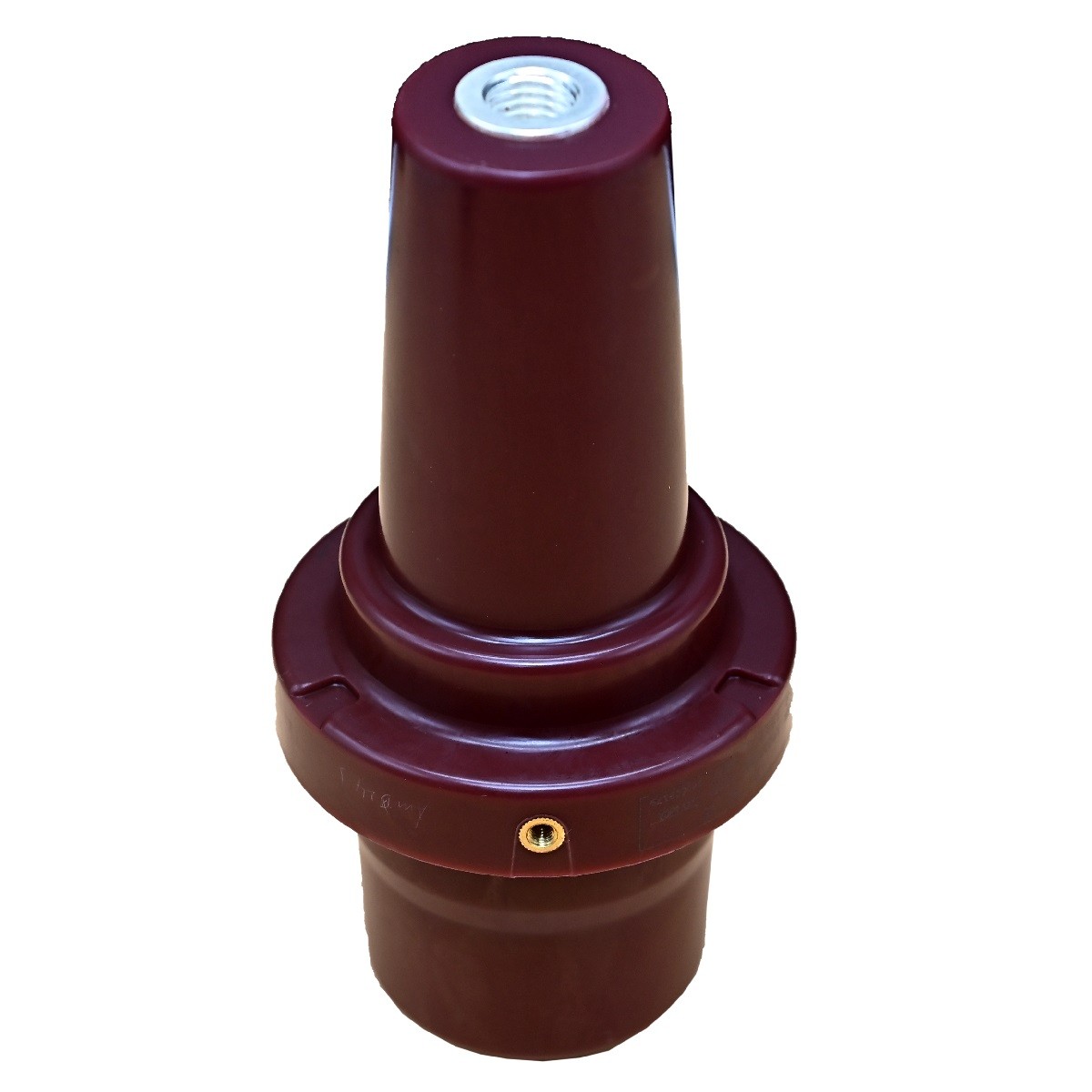

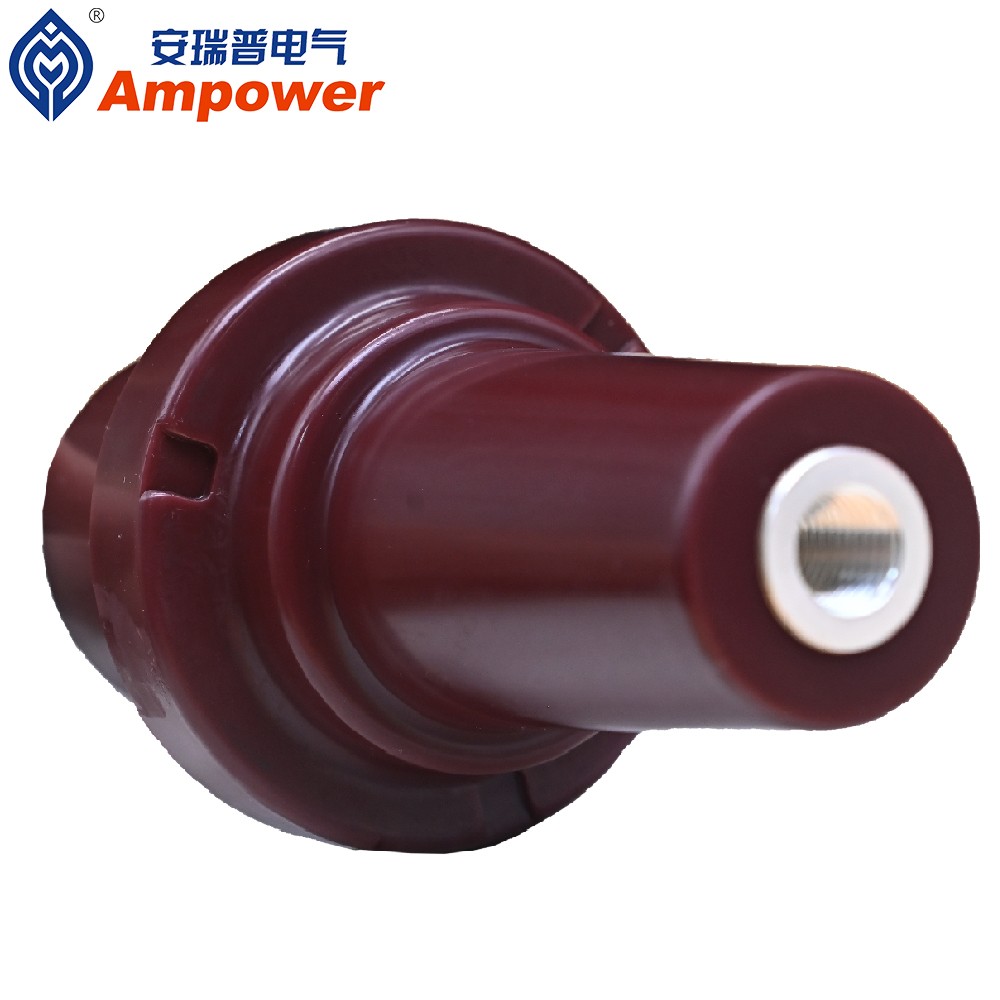

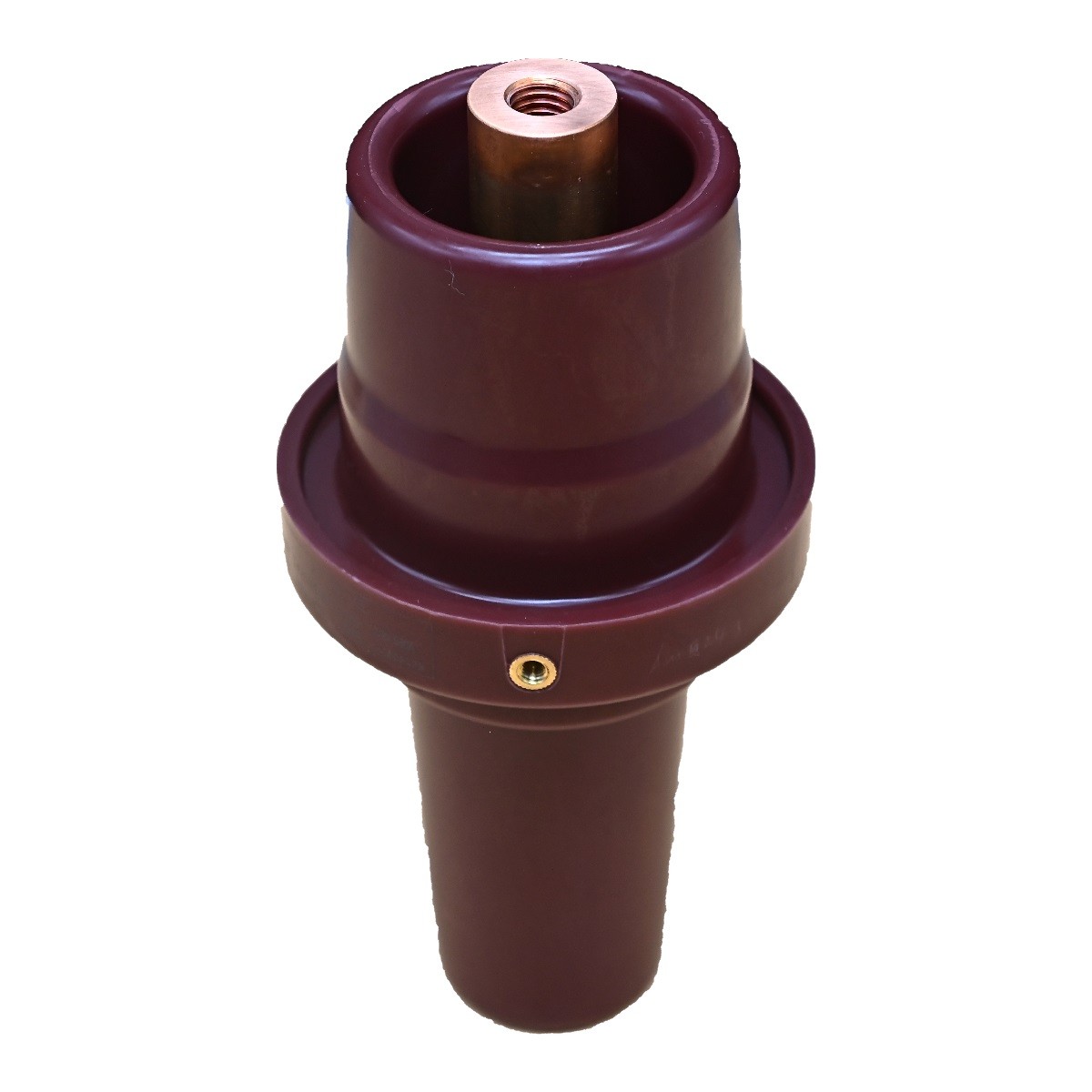

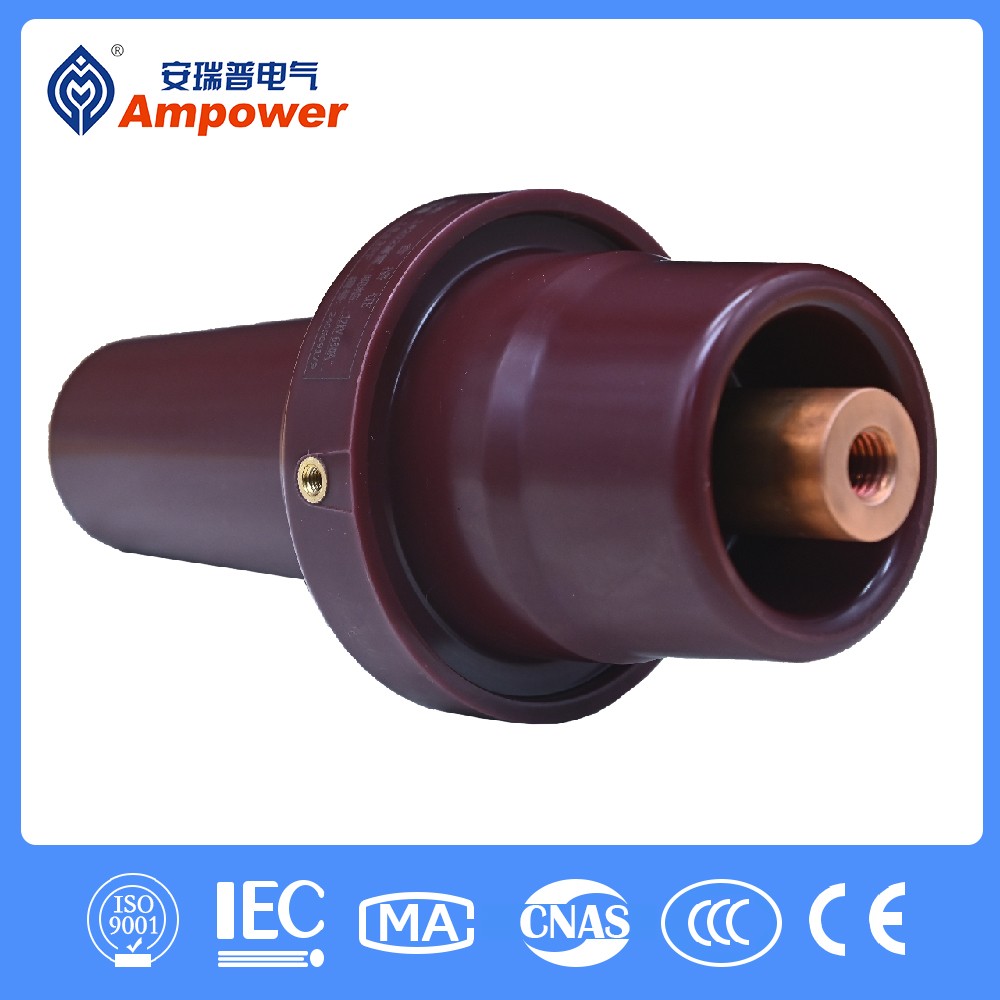

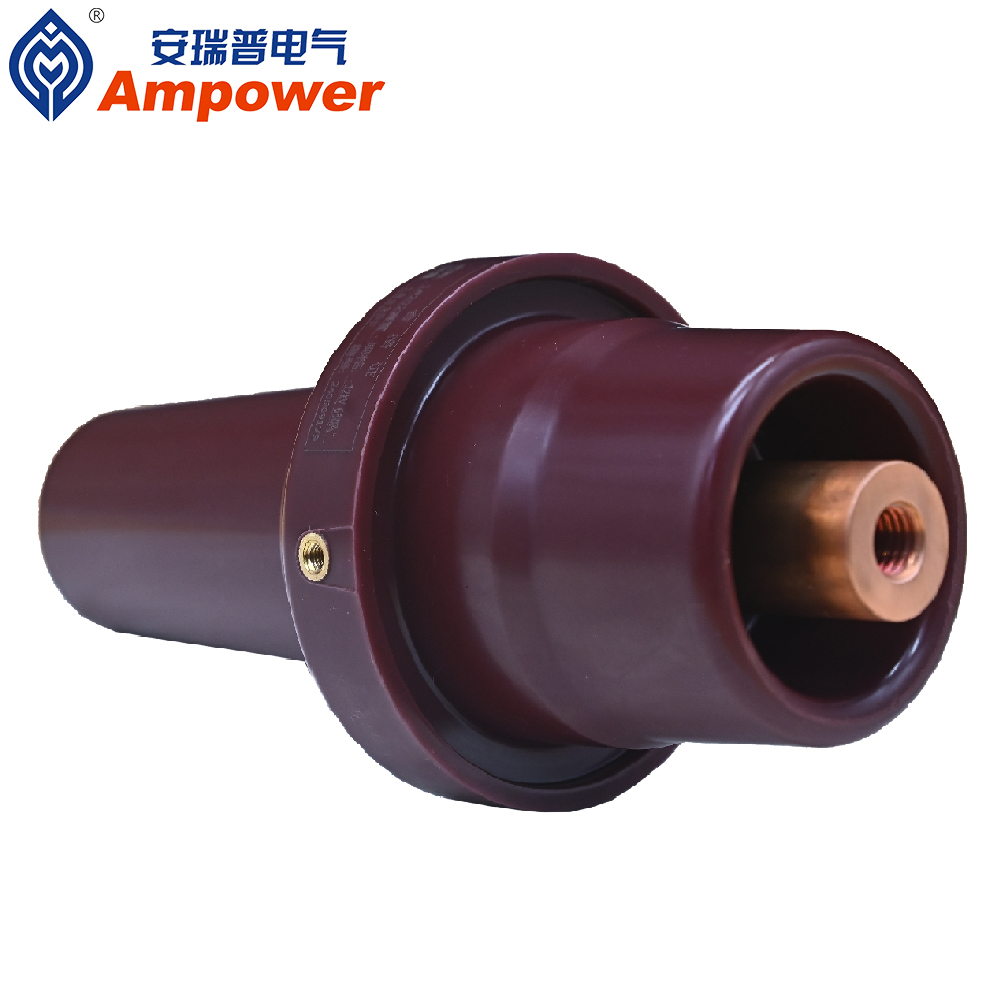

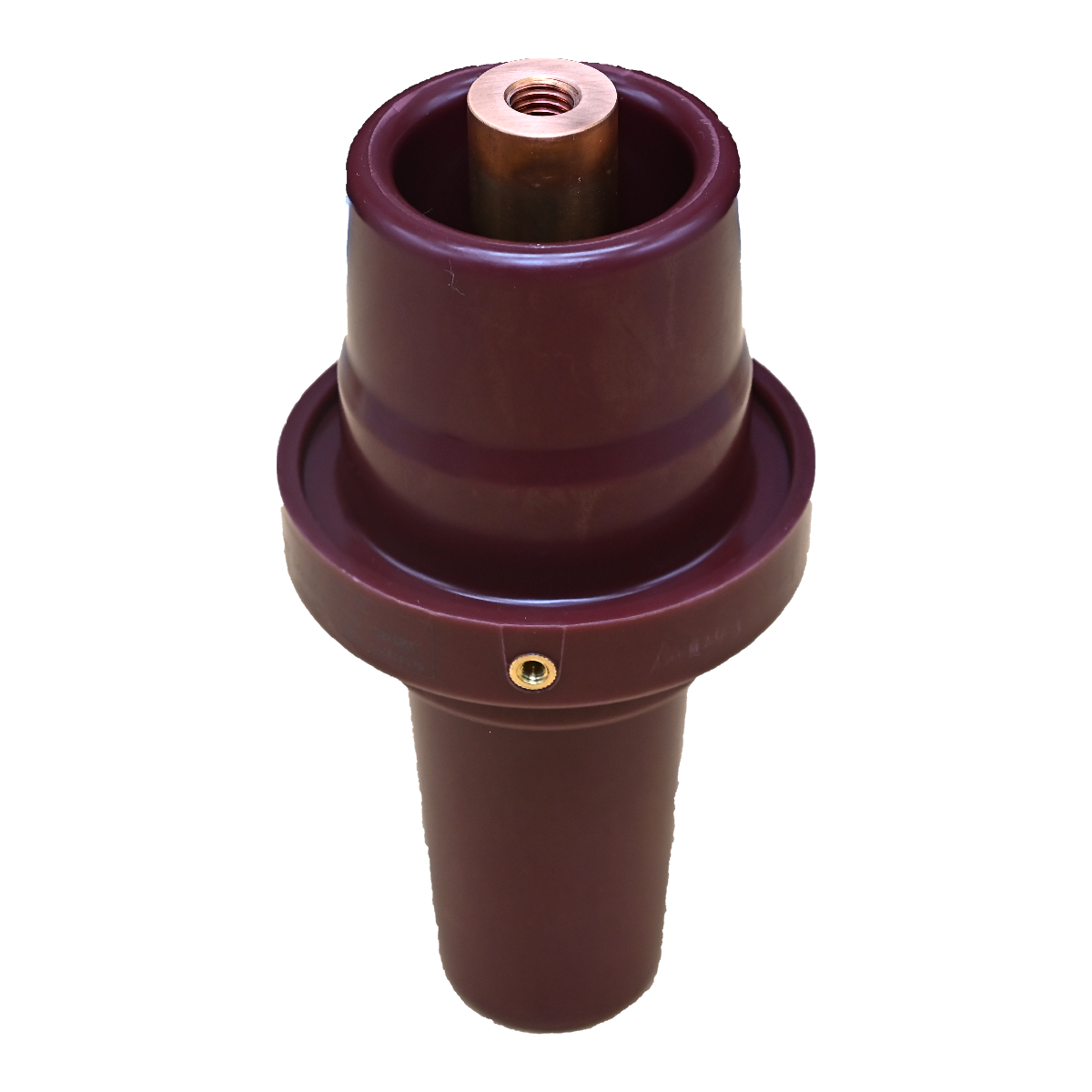

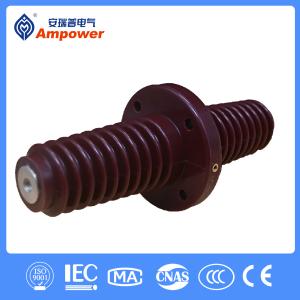

202 bushing is mainly used in gas -filled ring-net cabinet. It can effectively seal the insulation medium in the cabinet and support the connection between the switch cabinet and the cable. Its rated current can be 630A-1250A, and the voltage level can be used for 12kV and 24kV. The casing is made of high quality epoxy resin and red copper conductive rod,and adopts no local discharge in duction network,which can shield grounding or connect live display.
|
Product Name |
1#202bushing |
2#202bushing |
3#202bushing |
|
Rated current |
630A |
630A |
1250A |
|
Rated voltage |
12/24kV |
12/24kV |
12/24kV |
|
Partial Discharge |
14.4-26.4KV<5PC |
||
|
Power-Frequency withstand Voltage |
42-68kV/min |
||
|
Capacitance value |
18±3PF |
18±3PF |
26±3PF |
|
Scope of application |
SF6 Inflatable cabinet |
||
|

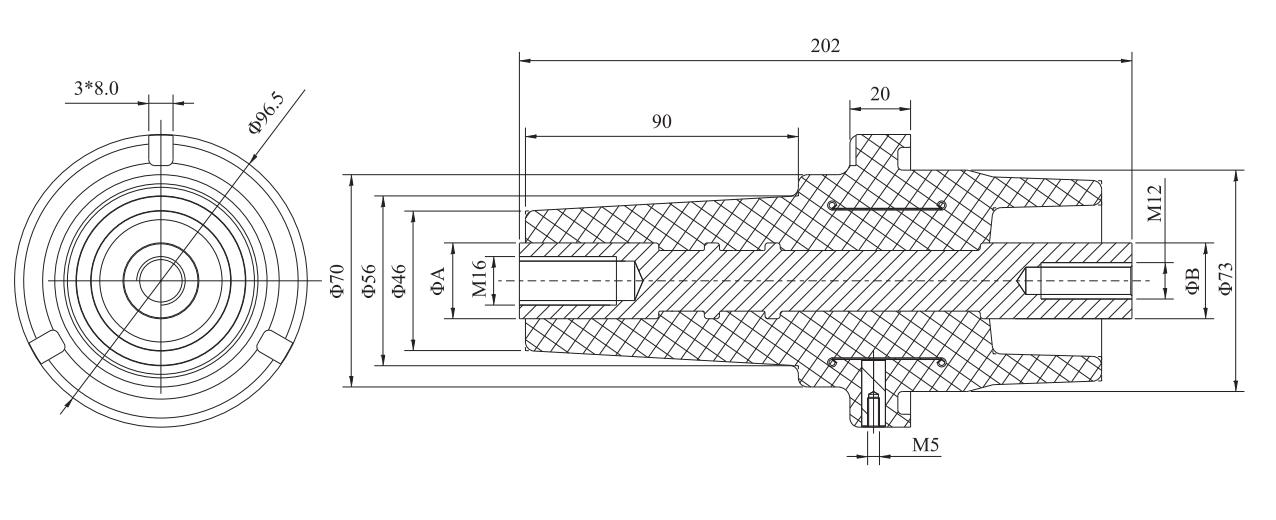

Size |
|||
|
A φ25 |
φ30 |
φ30 |
|
|
B |
φ25 |
①25 |
φ30 |
|
Notes |
|
M16 end overlap surface is 400 square meters |
|
