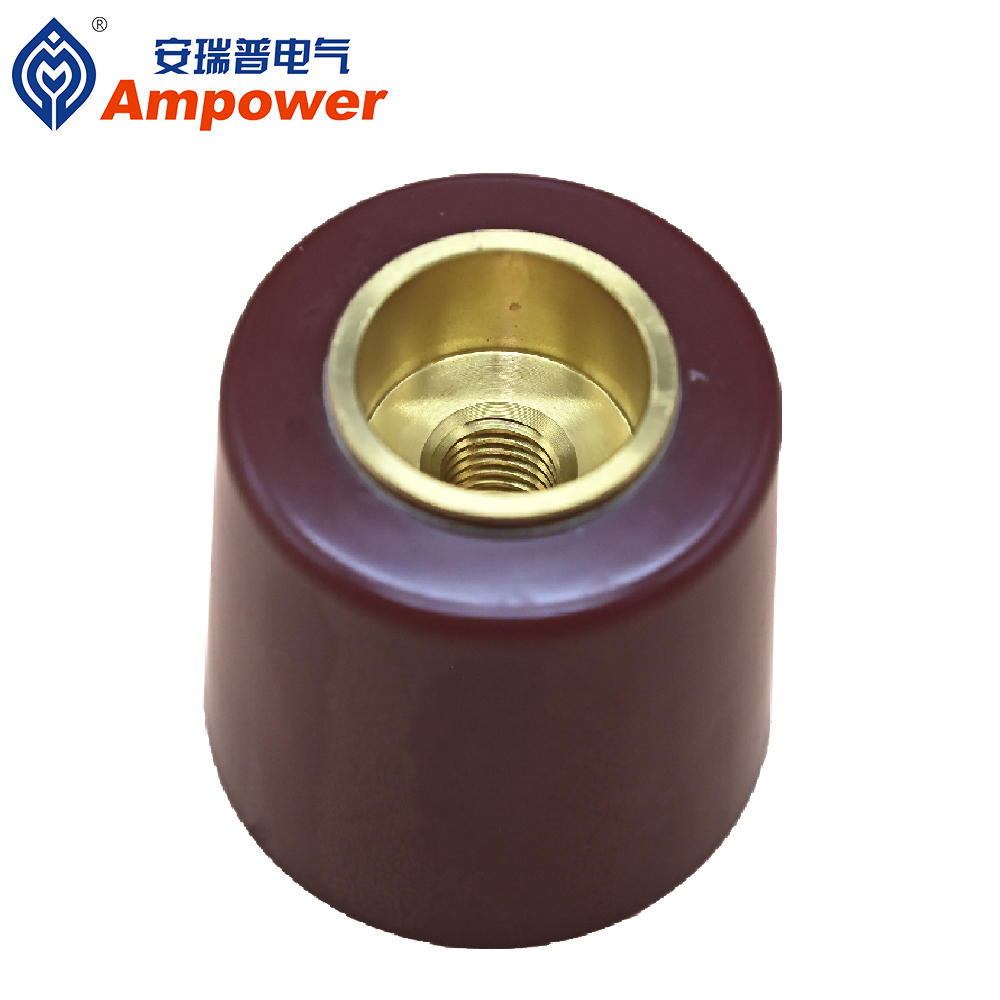

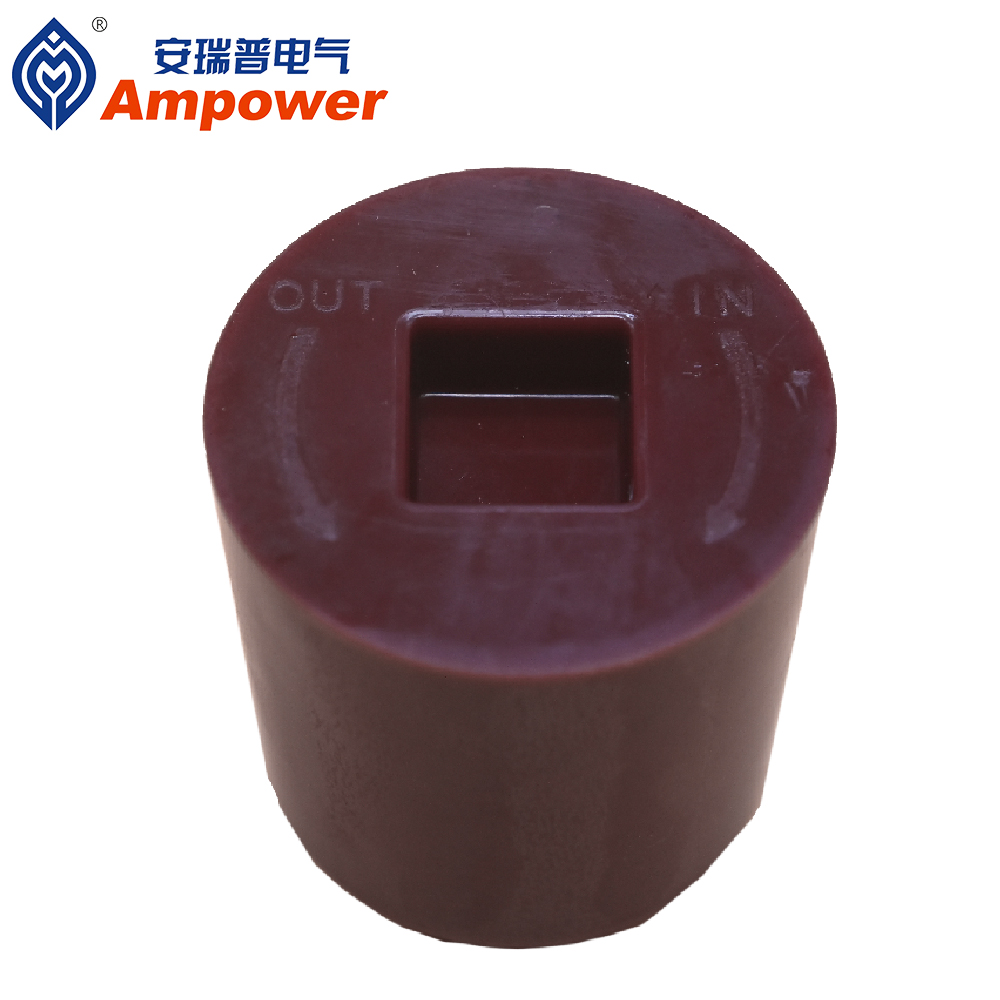

Product Description
| Product Parameters | ||||
| ltem | Unit | Techincal parameter | ||
| Rated voltage | kV | 12kV | ||
| Max.operating volatge | kV | 12kV | ||
| Rated frequency | Hz | 50Hz | ||
| Rated capacity | KVA | |||
| 1 min power frequency withstand volatge1min | kV | 45kV no breakdown, no flashover | ||
| Insulation Grade | Grade B | |||
| Standard | JB-T 10305-2001 | |||
| Applicable altitude | <1000 m | |||
| Ambient temparature | ºC | -25ºC~40ºC | ||
| Partial discharge test | PC | 14.4kV ≤10PC | ||
