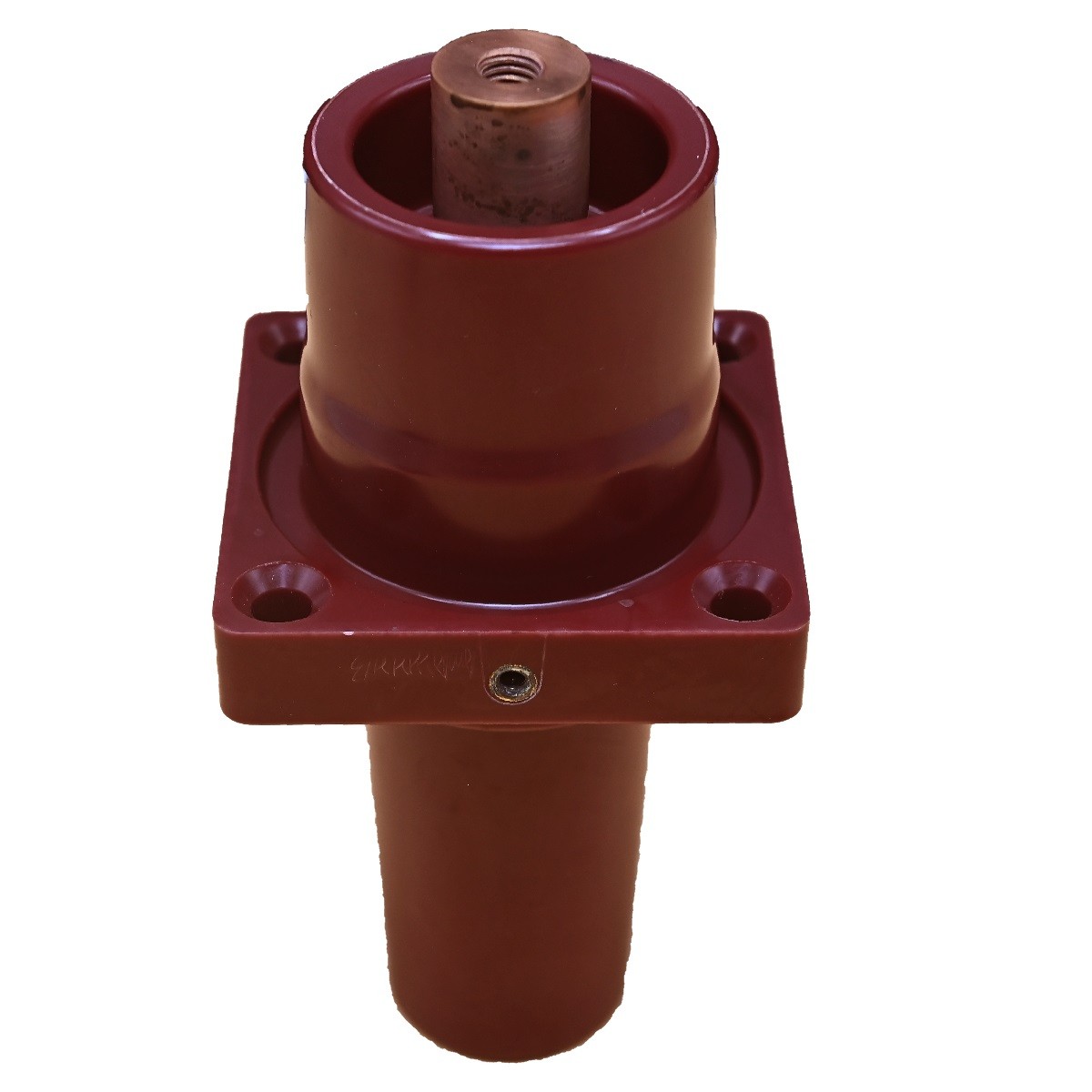

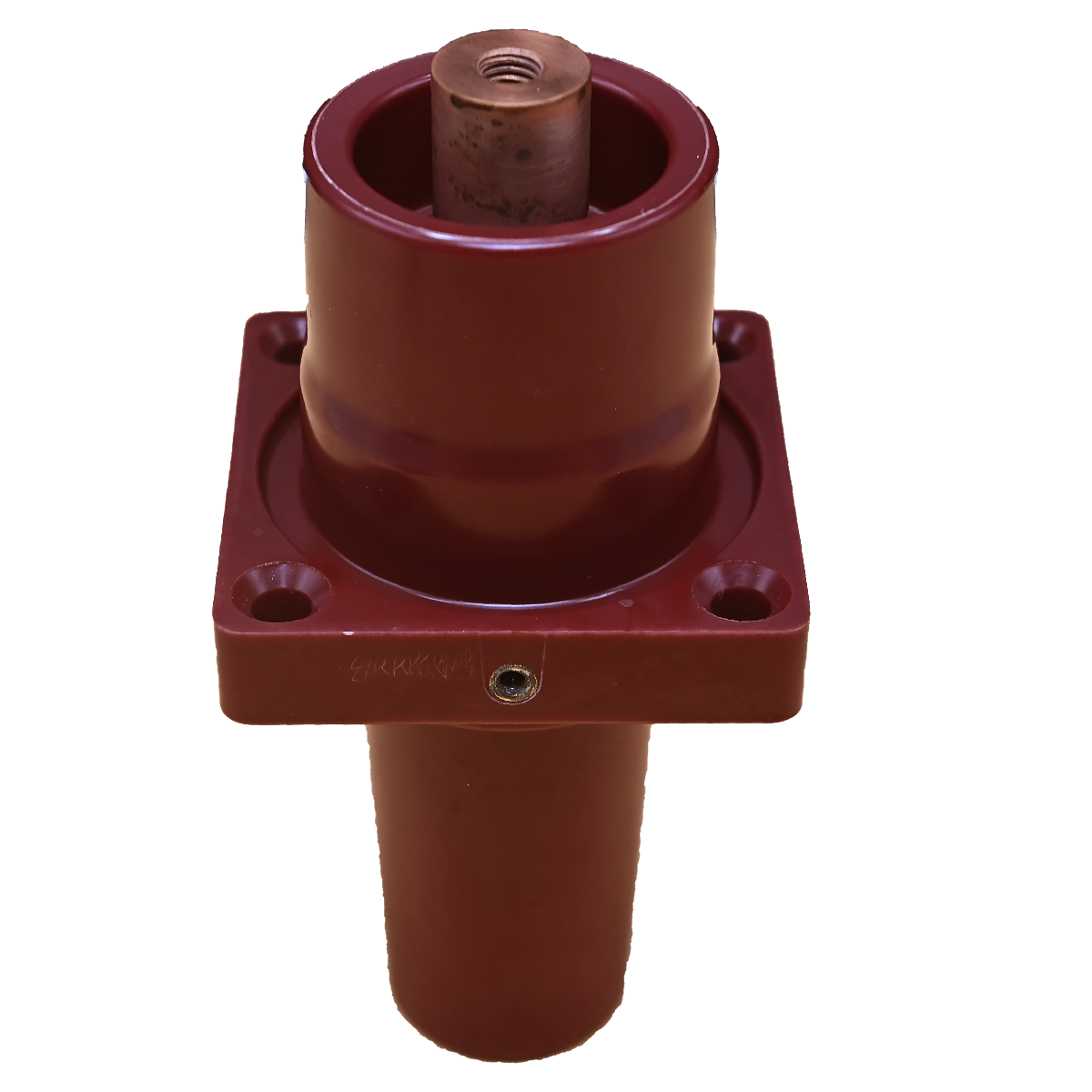

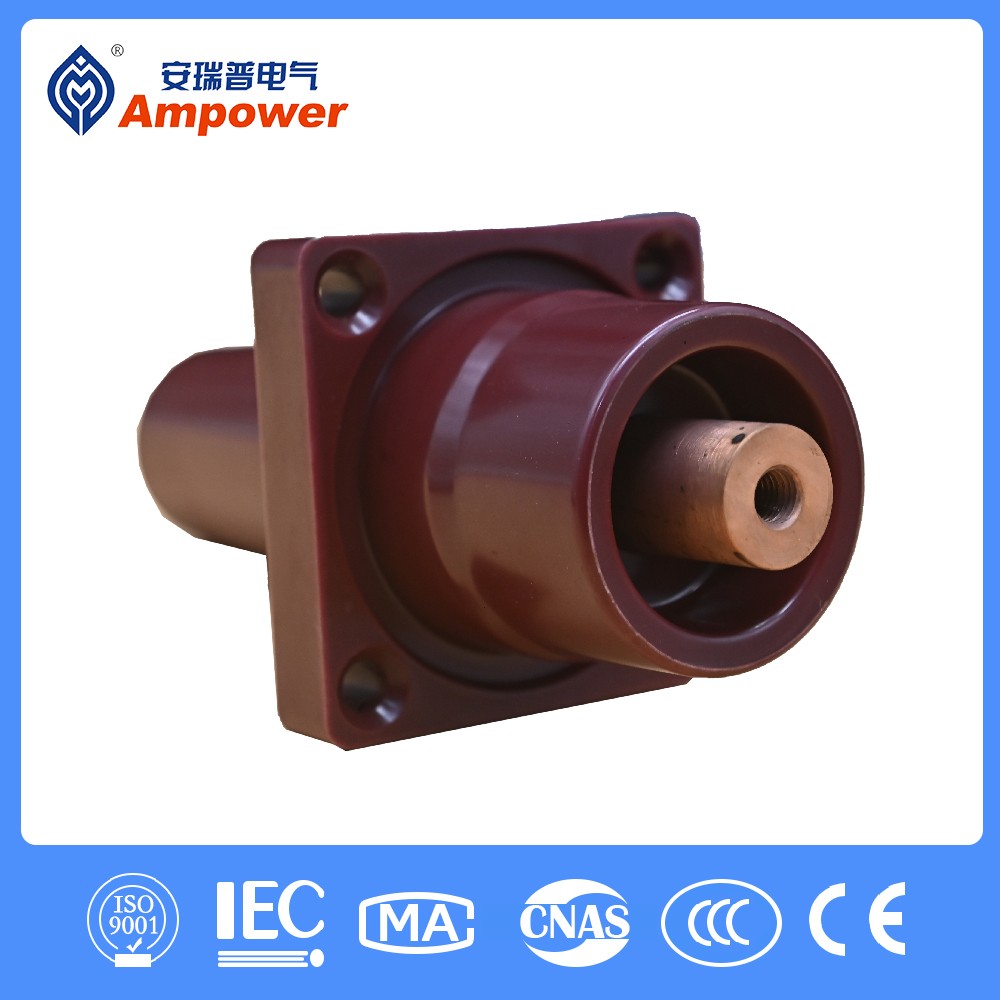

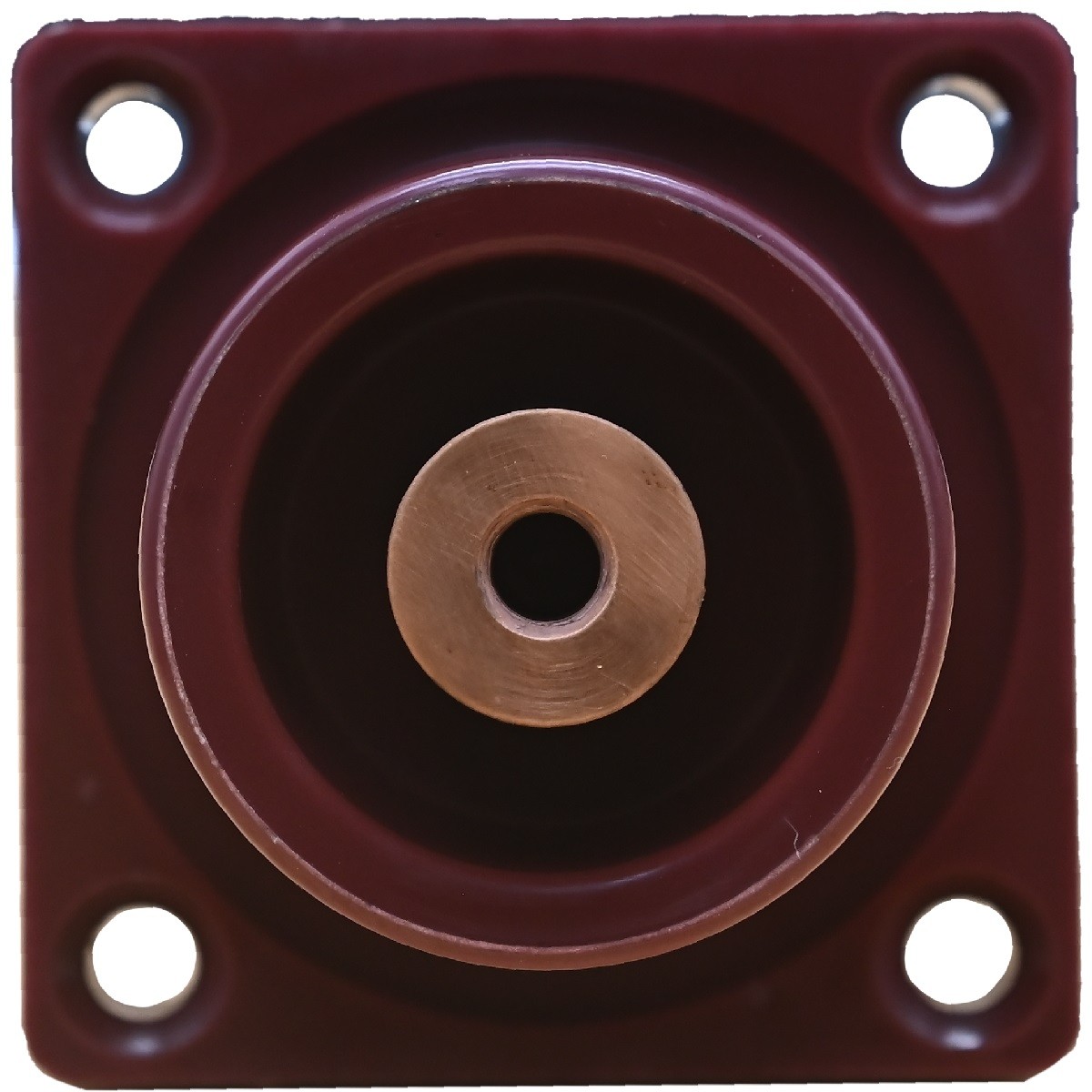

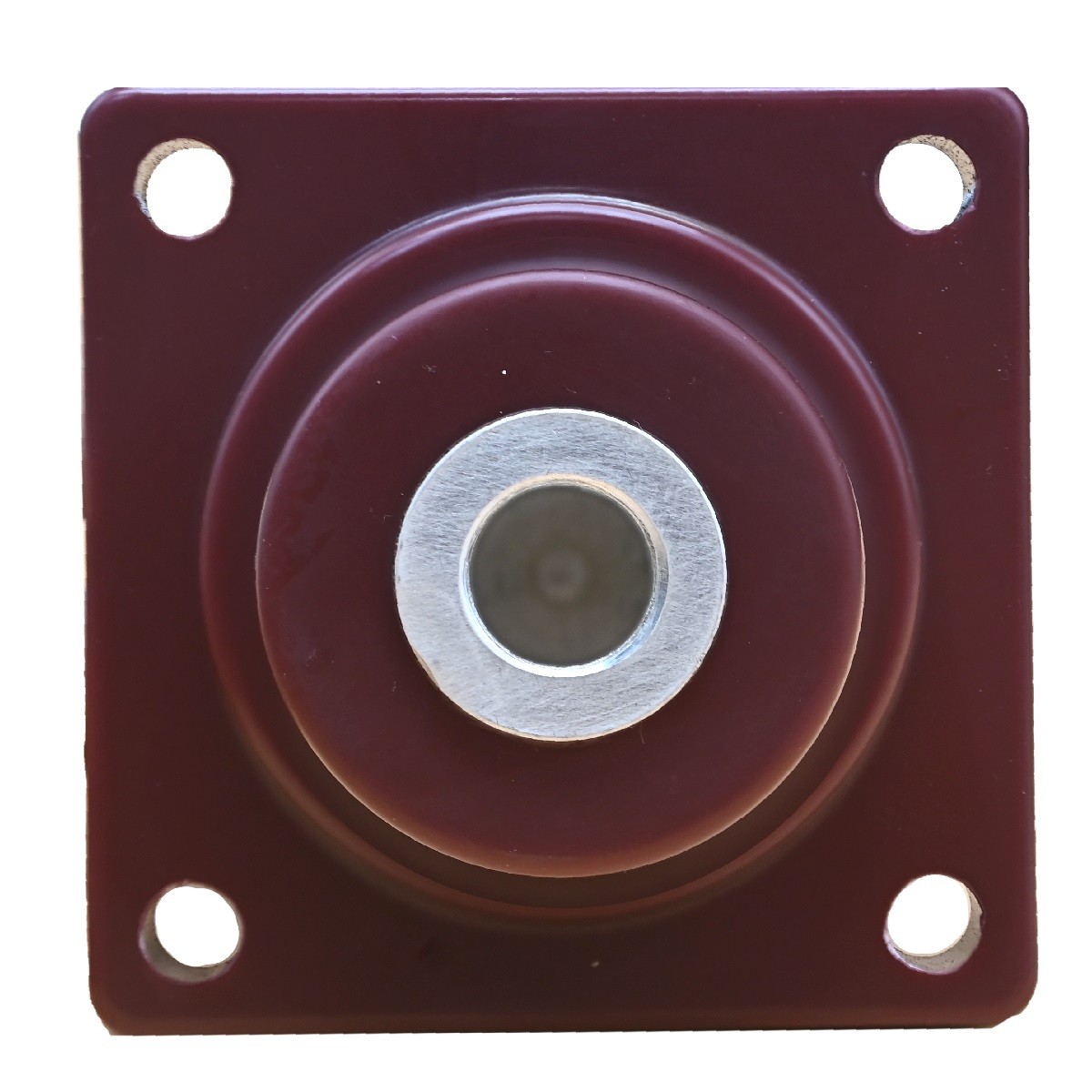

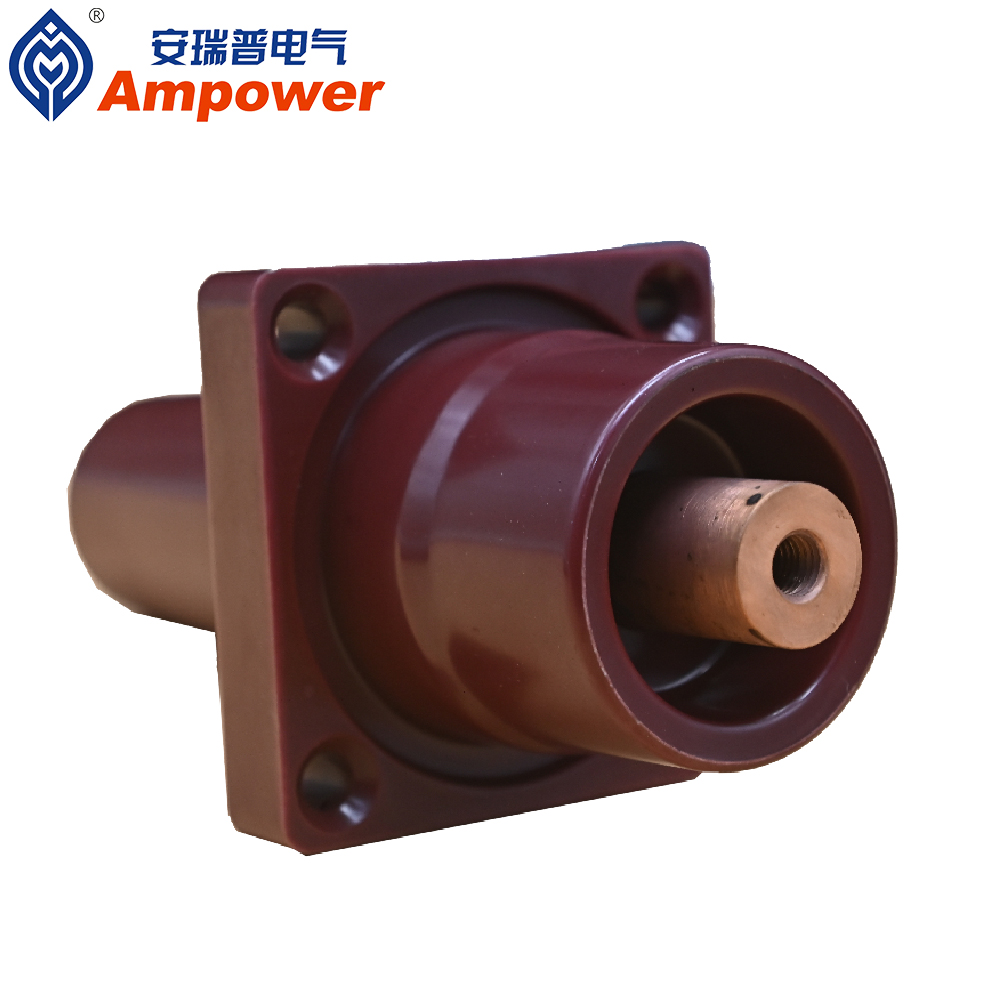

198 the casing is mainly used in the gas-filled ring-net cabinet,which can effectively seal the Insulation medium in the cabinet,support the connection between the switch cabinet and the cable,and is designed as a pressure-free plate type installation and fixation mode.Its rated current can be630a-1250a,and the voltage level can be used for 12kVand 24kV.The casing is made of high quality epoxy resin and red copper conductive rod,and adopts no local discharge induction network,which can shield grounding or connect live display.
|
Product Name |
1# 198bushing |
2# 198 bushing |
|
Rated current |
630A |
630A |
|
Rated voltage |
12/24kV |
12/24kV |
|
Partial Discharge |
14.4-26.4KV<5PC |
|
|
Power-Frequency withstand Voltage |
42-68kV/min |
|
|
Capacitance value |
18±3PF |
26±3PF |
|
Scope of application |
SF6 Inflatable cabinet |
|
|

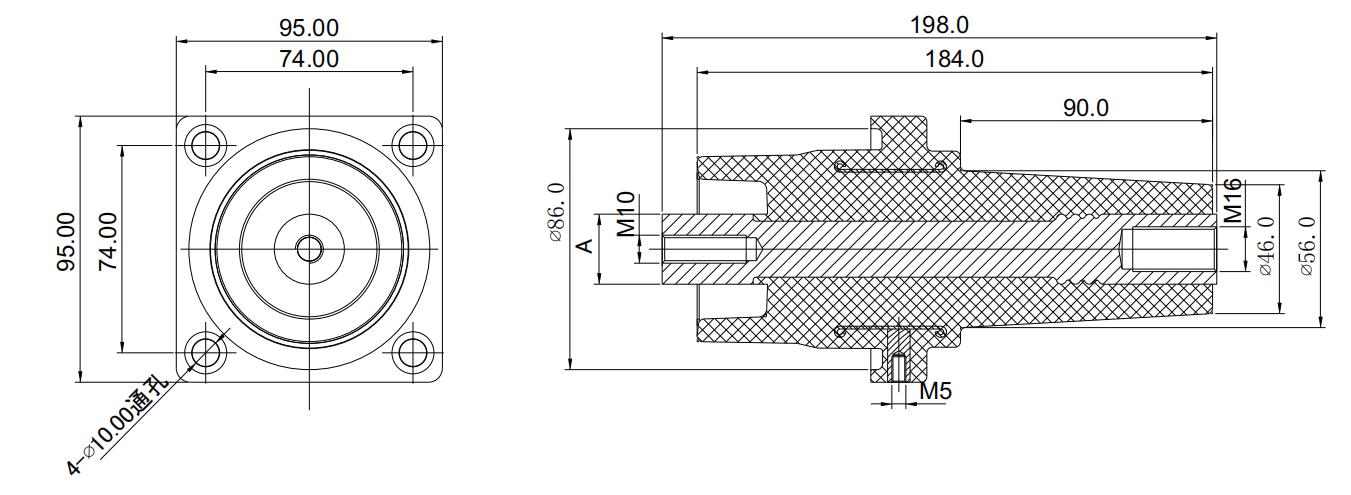

Size |
||
|
A |
φ25 |
φ30 |
